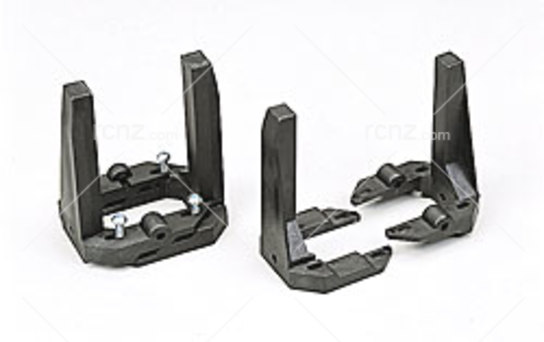

Great Planes - Adjustable Engine Mount .20-.48 image

Great Planes - Adjustable Engine Mount .20-.48

Manufacturer: Great Planes Product Code: GPMG1041


GPMG1041 - Adjustable Engine Mount .20-.48

price
$15.00

 Dispatch
Out of Stock In-Stock Alert

This engine mount is replacing the existing 20-40 size mounts from GPM. This mount has the same mounting pattern as the old MM19 mount.

FEATURES: Adjustable glass filled nylon mount.

INCLUDES: Right and left halves of mount, 4- #4x5/8" self tapping screws for mounting engine and instructions w/ mounting template.

SPECS: Overall length: 2-7/8" Usable beam length: 1-7/8" Mounting width: Min: 1-1/8", Max: 1-5/8" Mounting beam width: 3/8" Firewall bolt pattern: 1-3/16"x 1-3/16"

REQUIRES: Screws for attaching mount to firewall. Common length would be around 7/8". Diameter would be determined by user. Screws larger than 4-40 would require modification of mount.

Comments: Has holes for nose gear in both upright and side mount.
