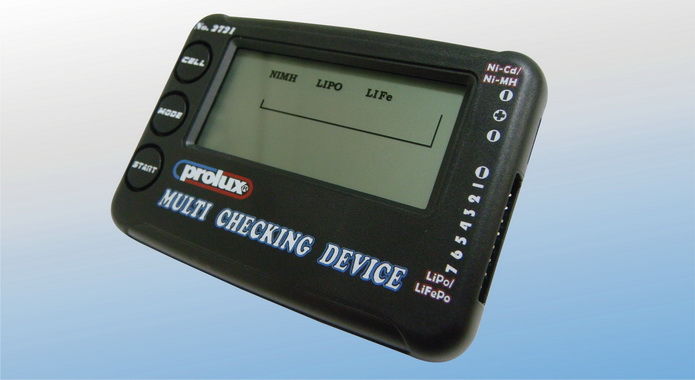

Prolux - Multi Checking Device
Manufacturer: Prolux Product Code: PLX-2721
PLX2721 Multi checking device
Suited for Li-Po, Li-Fe, Ni-Cd & Ni-Mh
Description:
New design Volts detector with higher performance
Character:
1.10 bits FUJITSU MCU IC design, reading voltage accurately
2.Large LCD display shows battery voltage and 10-step capacity icon
3.Capable of measuring : Li-Po 1-7cell (3.7V - 25.9V)
Li-Fe 1-7cell (3.2V - 22.4V)
(Voltmeter detecting range is between 3.5V - 31.5V)
4.Capable of measuring : Ni-Cd/MH 4-8cell (4.8V - 9.6V)
The test result for Ni-Cd/MH shows under condition of 330mA current
loading and test range is between 3.5V - 12.2V
5.Reverse voltage protection (no reaction shown)
