Tamiya - 1/10 Mercedes-Benz Unimog 425 CC-01 Kit image

Tamiya - 1/10 Mercedes-Benz Unimog 425 CC-01 Kit

Manufacturer: Tamiya Product Code: 58609

58609 1/10 Mercedes-Benz Unimog 425 CC-01 Kit


Out of Stock In-Stock Alert

The Tamiya CC-01 (Cross Country) chassis is a favorite vehicle amongst R/C enthusiasts. It's easy to assemble and offers realistic cross country running. The list of body styles available has grown with the addition of the Unimog 425. The Unimog, of course, is a multi-purpose truck with unrivalled off-road performance and its name is an acronym which stands for the German description "Universal-Motor-Gerat." The 425 variant was a heavier model that was produced in the 1970s and 1980s. It featured a 120hp engine and 2.81m wheelbase.

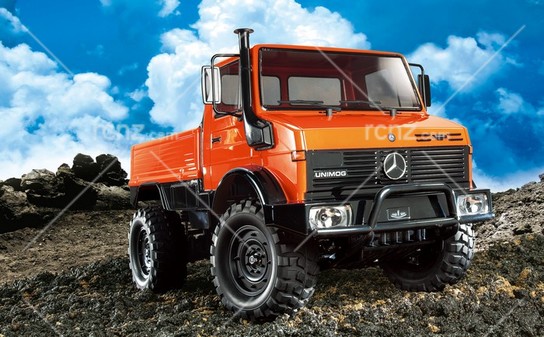

The Tamiya R/C replica faithfully captures all of the full size Unimog details down to the large snorkel and cap vent and large side view mirrors. The Unimog body is mounted on the capable CC-01 Cross Country chassis, which features independent front suspension and a rear 4-link rigid suspension set up for fun scale trail running enjoyment.

Product Specifications

Scale 1/10
Construction type Assembly kit
Terrain use Multi-Purpose
Drive-train 4WD
Drive type Gearbox
Drive line Dog bone
Differential type Gear
Suspension Front double wishbone, rear 4-link solid axle
Steering mechanism Bell-crank
Shock damper Oil-filled damper
Shock damper material Plastic
Tire type Rubber
Tire tread Radial
Body material Polycarbonate
Chassis material Plastic
Electronic Speed Control (ESC) Included
ESC model TBLE-02S
LED Light buckets Yes
LED lights Yes
Motor 540-brushed type
Bearings Plastic bushing
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Yes
Adjustable gear ratio Yes
Adjustable wheelbase Yes
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 The body of the Unimog 425 is accurately depicted, with the angular lines of the cab and the hood sloping forwards down to the wide grille.
Special feature 2 Lower body parts are integrated with main body.
Special feature 3 Separate parts are included to depict snorkel and cap, plus emblem cap and side mirrors.
Special feature 4 Comes with metal-plated light cases and front Mercedes-Benz emblem.
Special feature 5 Kit contains four 5mm-diameter LEDs to depict front and rear lights in the light cases.
Special feature 6 CC-01 chassis features a full-time 4WD system and front double wishbone, rear 4-link rigid suspension equipped with 4 CVA oil dampers.
Special feature 7 Over 40 Hop-Up-Options are available to tune the chassis to your skill level.
Requires A 7.2 battery & charger
Requires B 2-channel radio gear
