Tamiya - 1/10 Volkswagen Amarok CC-01 Kit
Manufacturer: Tamiya Product Code: 58616
58616 Volkswagen Amarok CC-01 kit
Dispatch
2 - 6 Business Days

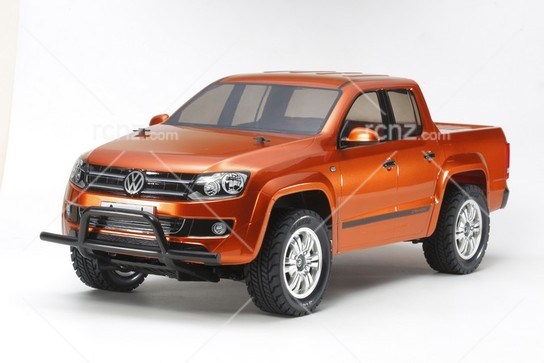

The Amarok is a mid-size pickup truck built by Volkswagen Commercial Vehicles (VWCV). The truck has been in production since 2010 and it has proven very versatile on both on-road and off-road applications. The life size subject features a modern pick-up truck body with double- and single-cab variants. Suspension is provided by front McPherson struts and rear leaf springs. This radio control model is based upon a 3-liter engine version of the truck and it's mounted on the Tamiya CC-01 (Cross Country) chassis platform.
Product Specifications
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | Multi-Purpose |
| Drive-train | 4WD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Independent front/solid axle rear |
| Steering mechanism | Bell-crank |
| Shock damper | Oil-filled damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Radial |
| Body material | Polycarbonate |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Included |
| ESC model | TBLE-02S |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Includes polycarbonate body which accurately captures the road-going version of the Amarok. |
| Special feature 2 | Features stylish metal-plated wheels. |
| Special feature 3 | Markings are included to decorate the body. |
| Special feature 4 | The CC-01 chassis features a full-time 4WD system and front double wishbone, rear 4-link rigid suspension equipped with 4 CVA oil dampers. |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear and paint |
