Futaba - 4YF 4ch Sky Sport 2.4G FHSS Mode 2

Manufacturer: Futaba Product Code: 4YFG2

4YF 4ch Sky Sport 2.4G FHSS with R2004GF Receiver  - Mode 2


2 - 5 Business Days

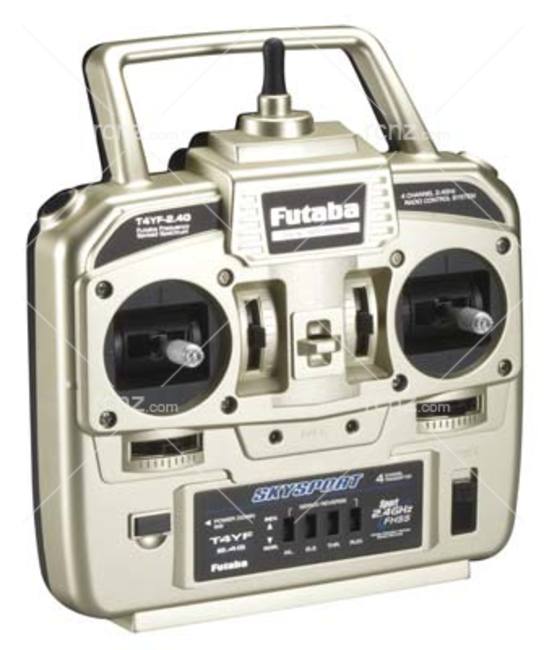

This is the 2.4GHz FHSS Futaba 4YF 4-Channel Radio System with the R2004GF Receiver. Transmitter and Receiver only, Servos not included

FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins and signal interference-pushbutton transmitter/receiver linking with no binding plugs R2004GF receiver has coaxial antenna that can be positioned inside model for optimum reception Power Down Mode - reduces RF power for 90 seconds, simplifying ground checks for interference All-channel servo reversing for more installation options Power and servo reversing switches are located down and out of the way for convenience and to avoid accidental changes Battery meter features one Green and one Red LED for easy-to-read GO/NO GO status, does not have battery failsafe function Elevon mixing Gimbals have knurled tops for a better "feel" on the sticks and to prevent finger slippage One year limited warranty through Hobby Services beginning at date of purchase

2.4GHz FHSS Futaba 4YF 4-Channel Transmitter R2004GF Receiver, On/Off Switch Harness Neck Strap Instruction Manual

AA Batteries: Four for transmitter Receiver battery pack depending on application

Transmitter; Transmitting Frequency: 2.4GHz band Power Requirement: Four AA cells Current Drain: 90mA Trainer Port: Micro Receiver; Power Requirement: 4.8 - 6V shared with servo Current Drain: 30mA at no signal Size: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm) Weight: 0.49oz (14g)
Mode 2 only

2.4GHz FHSS is not compatible with FASST systems, and the R2004GF receiver is compatible only with electronics created specifically for 2.4GHz FHSS systems.
