Futaba - R7008SB S.Bus2 2.4G FASST Receiver
Manufacturer: Futaba Product Code: 7008SB
R7008SB S.Bus2 2.4G FASST Receiver for 14SG/18MZ/18SZ

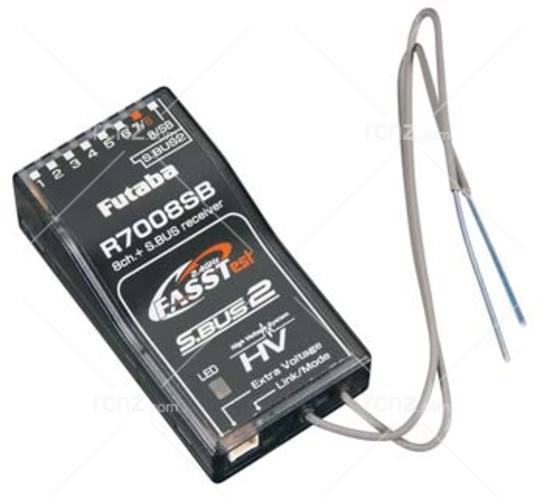

This is the Futaba R7008SB 2.4GHz FASSTest 8+ Channel High-Voltage Receiver
for the 18MZ Radio System.
| FEATURES |
Bi-directional communication with a FASSTest Futaba transmitter
using the S.Bus2 port
Multiple optional telemetry sensors may be connected to the S.Bus2
port and the data displayed on the transmitter
Includes both standard PWM output ports and S.Bus output ports
External voltage port, 0-70V DC
The External Voltage connector needed for this is:
CA-RVIN-700 EX VLT CBL
| INCLUDES |
Futaba R7008SB 2.4GHz FASSTest Receiver with Instructions
| SPECIFICATIONS |
Receiving Frequency: 2.4GHz FASSTest system
Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
Current drain: 75mA
External voltage Port: 0 - 70V DC
Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 0.38oz (10.9g)
Antenna Length: 5-3/4"
