Futaba - S3802 Yacht Standard Servo
Manufacturer: Futaba Product Code: S3802

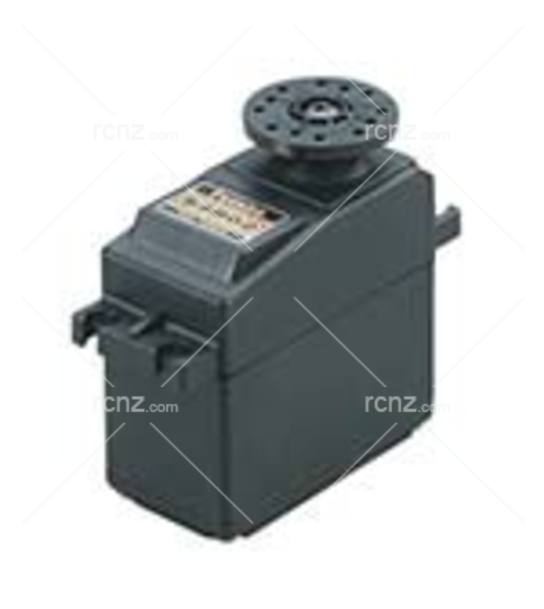

Futaba S3802 Yacht Standard Servo
Futaba S3802 Yacht Standard Servo
FEATURES: Metal gears with a special interference-eliminating lubricant to handle high torque applications. 3-pole motor Two ball bearings Plastic sail arm included (FSH25H), plus 22mm Round Horn Rubber gaskets make it water and dust resistant. Has an arc of 60?, it is capable of 140? with a computer radio that has adjustable ATV. updated 4-28-05, dew
INCLUDES: One S3802 High Torque Sail Servo w/ J Connector
Four Mounting Screws Four Rectangular Grommets Four Brass eyelets
SPECS:
Length: 1.7" (1-3/4") (44mm)
Width: 0.9" (7/8") (23mm)
Height: 1.7" (1-11/16") (43mm)
Weight: 2.5oz (2-9/16oz) (72g)
Sail Arm Length: 125mm
Torque: 122 oz-in @ 4.8V - 153 oz-in @ 6V 8.8 kg-cm @ 4.8V - 11.0 kg-cm @ 6V
Transit Time: 0.70 sec/60? @ 4.8V - 0.56 sec/60? @ 6V
