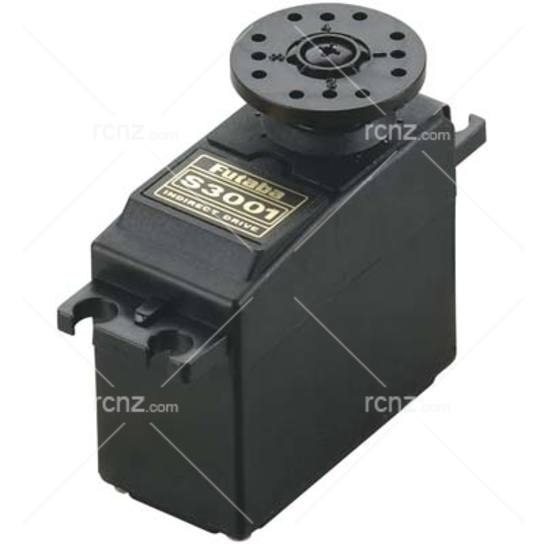

Futaba - 3001 Standard Servo Ball Raced image

Futaba - 3001 Standard Servo Ball Raced

Manufacturer: Futaba Product Code: S3001


3001 Standard Servo Ball Raced

price
$34.00

 Dispatch
Out of Stock In-Stock Alert

This is a Standard Servo with a Ball Bearing on the output shaft.
This has a "J" connector and uses a nylon gears.

This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries, make sure they are capable
of delivering sufficient amps.





FEATURES

Single Top Ball Bearing
Same mounting as S148 and S9201 (individual rectangular grommets)
3-pole motor
Nylon gears



INCLUDES

One S3001 Standard Servo
One accessory package



SPECIFICATIONS

Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16")
(40 x 20 x 36mm)
Weight: 1.6oz (1-9/16oz) (44g)
Torque: 33 oz-in (2.4kg-cm) @ 4.8V
42 oz-in (3.0kg-cm) @ 6V
Transit: 0.28 sec/60? @ 4.8V
0.22 sec/60? @ 6V
