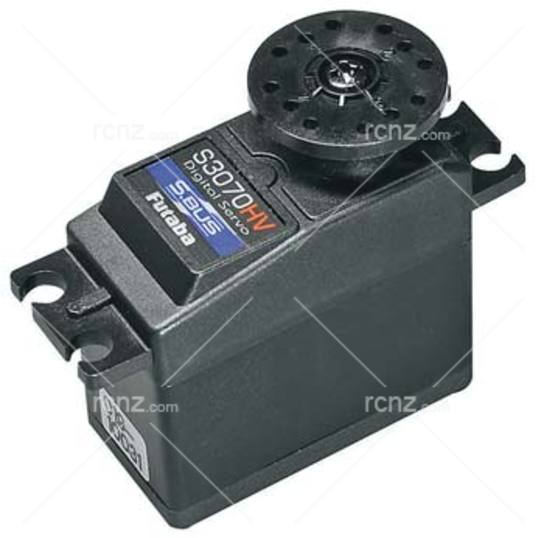

Futaba - S.Bus High-Voltage BB Metal Gear Servo image

Futaba - S.Bus High-Voltage BB Metal Gear Servo

Manufacturer: Futaba Product Code: S3070HV


S3070HV S.Bus High-Voltage BB Metal Gear Servo

price
$105.00

 Dispatch
2 - 6 Business Days

This is the Futaba S3070HV High Voltage, Ball Bearing, Metal Gear Equipped,
Standard Size S.BUS Servo.

FEATURES

Designed for models that require high speed and high torque
May also be used in conventional (non-S.BUS) systems
Ball bearing equipped output shaft
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES

Futaba S3070HV S.BUS Servo, 0.83" (21mm) Round Horn, 1.4" (35.8mm)
diameter Round Horn, (39mm) 4-Point Horn, 1.2" (32mm) 6-Point Horn
Mounting Hardware and Instructions

SPECIFICATIONS

Speed: 0.17 sec/60? at 6.6V
0.15 sec/60? at 7.4V
Torque: 80.5 oz/in (5.8 kg/cm) @ 6.6V
90.3 oz/in (6.5 kg/cm) @ 7.4V
Size: 1.57 x 0.79 x 1.50" (40 x 20 x 38.1mm)
Weight: 1.73oz (49g)
Power Supply: 6.0 - 7.4V
