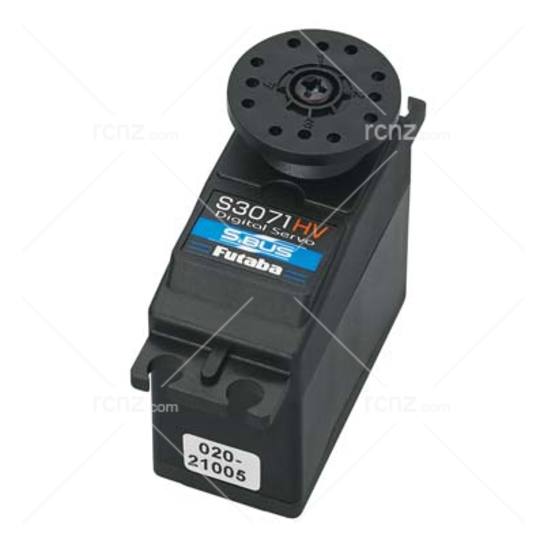

Futaba - S3071HV S.Bus HV BB MG Servo image

Futaba - S3071HV S.Bus HV BB MG Servo

Manufacturer: Futaba Product Code: S3071HV


S3071HV S.Bus HV BB MG Servo

price
$112.00

 Dispatch
2 - 6 Business Days

This is the Futaba S3071HV High Voltage, High Torque, Ball Bearing,
Metal Gear Equipped, Standard Size S.BUS Servo.

FEATURES

Designed for models that require very high speed and high torque
May also be used in conventional (non-S.BUS) systems
Ball bearing equipped output shaft
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES

Futaba S3071HV S.BUS Servo, 0.83" (21mm) Round Horn, 1.4" (35.8mm)
diameter Round Horn, (39mm) 4-Point Horn, 1.2" (32mm) 6-Point Horn
Mounting Hardware and Instructions

SPECIFICATIONS

Speed: 0.19 sec/60° at 6.6V
0.17 sec/60° at 7.4V
Torque: 139 oz-in (10.0 kg-cm) @ 6.6V
146 oz-in (10.5 kg-cm) @ 7.4V
Size: 1.57 x 0.79 x 1.50" (40 x 20 x 38.1mm)
Weight: 1.73oz (49g)
Power Supply: 6.0 - 7.4V

SBus Programmable Defaults
Dead Band Degree: 0.45
Damper Factor: 128
Stretcher Gain: 1
Boost: 40
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
