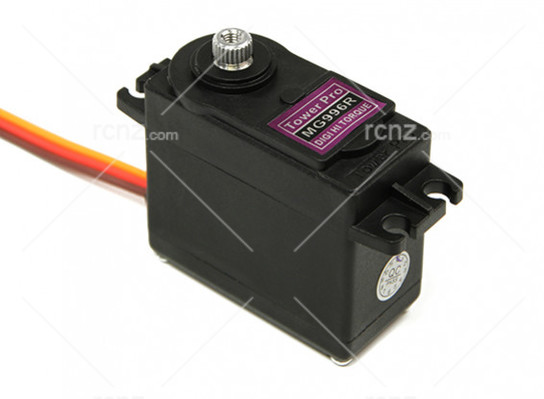

Towerpro - MG996R Metal Geared 11kg Servo image

Towerpro - MG996R Metal Geared 11kg Servo

Manufacturer: TowerPro Product Code: MG996R

MG996R Metal Geared 11kg Servo


1 - 3 Business Days

This is essentially an upgraded version of the famous Towerpro MG995 servo. It now has a redesigned PCB and IC control system which makes it far more accurate. Its internal gearing and motor are also upgraded to improve dead bandwith and centering.
All specifications are the same as the previous model MG995, however this servo is far more accurate, and safe to use in aircraft which require precise servo movements and perfect centering.

Weight: 55g
Voltage: 4.8v / 6v
Speed: 0.20sec/60deg (4.8v) - 0.16sec/60deg (6v)
Torque: (4.8v) - (6v)
Gear Material: Metal
Gear Type: Digital
Motor: Brushless
Dimension: 40.7*19.7*42.9mm
Temperature range: 0_ 55
Servo Plug: JR (Fits JR and Futaba)
Spline Count: 25
