Tamiya - ESC TEU-105BK  image

Tamiya - ESC TEU-105BK

Manufacturer: Tamiya Product Code: 45055


45055 ESC TEU-105BK
LF battery compatible

price
$60.00

 Dispatch
2 - 6 Business Days

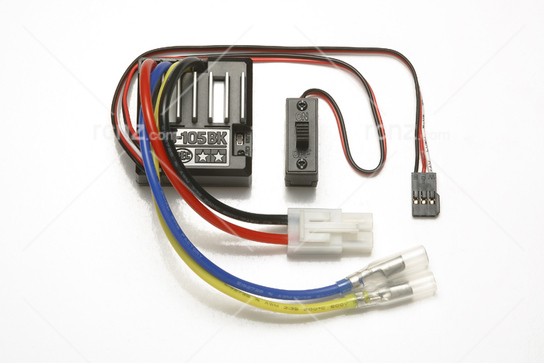

The TEU-105BK ESC, which features a BEC is compatible with a wide range of receivers available in the R/C hobby market. The TEU-105BK also comes standard in most of Tamiya's entry level radio control kits.



  • Compact forward/reverse ESC for electric R/C cars. Reverse function can be disabled.
  • Features heat and over current protection functions with LED indicator.
  • Compatible with LF batteries and includes a battery cutoff function to prevent over discharging.
  • Equipped with aluminum heat-sink.
  • BEC system included.
  • Compatible with receivers from Tamiya and other manufacturers.
  • Max. continuous current (FET spec): 60A
  • Input voltage: 6.6-7.2V
  • Compatible motor: Sport-Tuned Motor, motors over 25 turns
  • Receiver output: 6V/1A (BEC)
  • Dimensions: 39.4x36.5x15mm (not including protrusions)
  • Weight: 44.5g

May also be supplied as Tamiya TEU-104BK ESC as identical product
