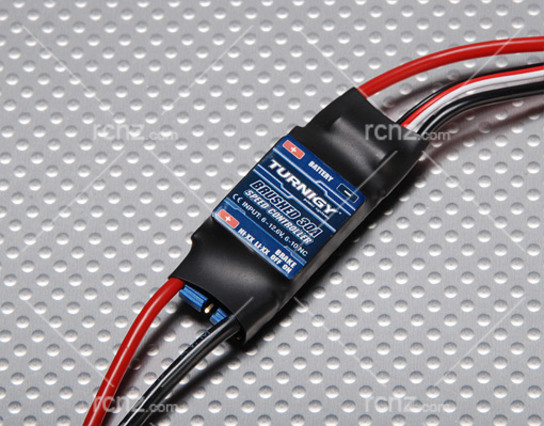

Turnigy - 30A Brushed ESC image

Turnigy - 30A Brushed ESC

Manufacturer: Turnigy Product Code: TGY-30A


30A brushed ESC

price
$26.00

 Dispatch
1 - 3 Business Days

The Turnigy brushed ESC is an excellent speed controller with a linear throttle curve, Lipoly/NiMh ready and programmable braking.

Features:

The break function can be turn on/off by the jumper
Battery type can be chosen by a jumper
For Lipo the threshold for each cell is 3.0v, less than the threshold ESC will gradually reduce the output power
PWM frequency is 2KHz
Over heat protection over 110C
Throttle signal loss for 1sec will gradually reduce the output power, after 2sec completely cut-off

Spec.

Cont Current: 30A
Burst Current: 40A
BEC Mode: 5v/1A
Lipo Cells: 2-3
NiMH : 4-10
Weight: 21g
Size: 45x21x8mm

FOR USE WITH BRUSHED MOTORS ONLY.
WILL NOT WORK WITH BRUSHLESS MOTORS
