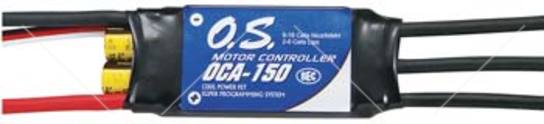

O.S - Brushless ESC OCA-150 (50A) image

O.S - Brushless ESC OCA-150 (50A)

Manufacturer: O.S Engines Product Code: OCA150


150 Brushless ESC OCA-150 (50A)

Special
price
Was $190.00 $95.00

 Dispatch
In Stock Now - Ships within a Day

FEATURES

For airplane and helicopter usage
Low voltage cut-off stops motor before control is lost and cells are
over-discharged
Battery type and cell number recognition
Start protection guards against involuntary starting of motor
No signal cut-off switches ESC off when transmitter signal is not
received



INCLUDES

OCA-150 50A 25V Electronic Speed Controlwith pretinned Motor and
Battery Leads, Receiver Connector and Instructions



REQUIREMENTS

Brushless motor such as the O.S. OMA-3820-1200 OSMG9525,
OMA-3825-750 OSMG9530, OMA-3815-1000 and OMA-3810-1050
Battery connectors of modeler's choice (O.S. motors listed above
include ESC connectors)



SPECIFICATIONS

Cell Handling Capability: 6-18 NiCd/NiMH, 2-6 LiPo
Function: Forward-Stop-Brake-Reverse
Voltage Range: 6-25V
Peak Load Current: 50A (60A 5 seconds)
BEC Output: 5.5V 3A (peak 5A)
PWM Frequency: 32kHz
Protective Function: Start protection/Low Voltage/ No Signal cut-off/
Overheat protection
Parameter Setting: ESC/ESC Programmer OCP-1 (optional extra)
Dimensions: 1.9 x 0.79 x 0.39" (50 x 20 x 10mm)
Weight: 1.8oz (52g)
