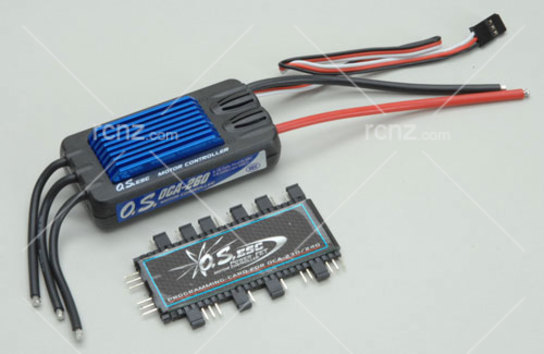

O.S - Brushless ESC OCA-260 (60A) W/OCP-2 Programmer image

O.S - Brushless ESC OCA-260 (60A) W/OCP-2 Programmer

Manufacturer: O.S Engines Product Code: OCA260


260 Brushless ESC OCA-260 (60A) W/OCP-2 Programmer

price
$206.00

 Dispatch
Out of Stock In-Stock Alert

O.S. Brushless ESCs have the latest high quality FETs, for the coolest possible operation! With auto battery cell recognition, start protection, low-voltage and no-signal cut off, its easy to set up too. Ni-Cd, Ni-MH and Li-Po compatible and the perfect complement to an O.S. brushless motor!

o Start protection
o Low voltage cut-off
o No signal cut-off
o Overheat protection

Suitable electric motors: OMA3820-960, 1200, OMA-3815-1000

Specifications

PWM Frequency: 8 - 16kHz
Weight: 78g
B.E.C. (Voltage/Amps): 5.5v, 4A (Peak 5A)
Max. Continuous Current (Amps): 60A (Burst 70A, 5 seconds)
Programming: OCP-2 Programmer (Included)
Reverse: Yes
Voltage: 6 - 25.2v
Brake: Yes
Dimensions: 76 x 40 x 21mm
LiPo: 2S - 6S
NiCad/Ni-MH: 6 - 18
