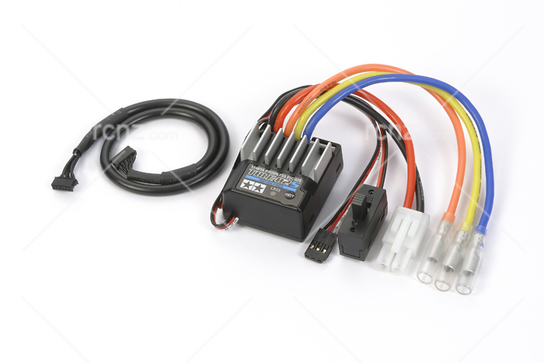

Tamiya - TBLE-02 Brushless ESC 02 - Sensored
Manufacturer: Tamiya Product Code: 45057
45057 TBLE-02 Brushless ESC 02 sensored. Can be used with brushed motors also.
Dispatch
Available - Ships in 2-5 Business Days
This ESC is especially designed for use with the TBLM series of Tamiya Brushless Motors (Sensored-Type, 10.5T, 12.5T, 14.5T, 16.5T). Brake and neutral brake settings can be adjusted independently, and it features 3 protection systems against overheating, overloading and low voltage. It is also compatible with brushed motors (Normal Type 540 and Sports-Tuned Motors 25 Turn or higher). Note: When using servos with a current exceeding 1.5A, BEC output may be shut down.
Wiring Options (see manual for more information).
Product Specifications
| Type | Detail |
|---|---|
| Special feature 1 | Forward, Reverse, Braking (Reverse function may be disabled) |
| Special feature 2 | Input voltage: 6.6-7.2V |
| Special feature 3 | Dimensions: 42mmx34mmx25mm |
| Special feature 4 | Max. continuous current: 60A |
| Special feature 5 | Receiver output: 6V/1.5A |
| Special feature 6 | Weight: 50.8grams (including cables) |
| Special feature 7 | Protection systems: overheat, overload, low voltage |
| Special feature 8 | Compatible motors: TBLM series (sensored) Sport Tuned brushed motors 540 size over 25T |
