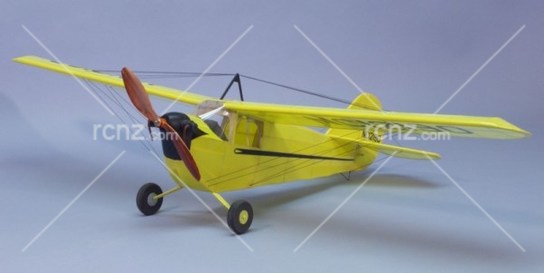

Dumas - Aeronca C-3 Aircraft Kit 40" (R/C Capable) image

Dumas - Aeronca C-3 Aircraft Kit 40" (R/C Capable)

Manufacturer: Dumas Product Code: DUM 1813


Aeronca C-3 Aircraft Kit 40" (R/C Capable)

price
$150.00

 Dispatch
Out of Stock In-Stock Alert

Construction: Hand selected laser cut balsa Vacuum molded nose cowl Rudder Control: Pull-pull cables Elevator Control: Wire pushrod Servo Placement: Mounted in rails on fuselage Landing Gear: 1/16" diameter wire front,. 041 diameter wire rear, requires bending.


Specs

  • Length: 22" (559mm)
  • Wingspan: 40" (1016mm)
  • Wing Area: 329 sq.in. (21.25 sq dm)
  • Airfoil: Flat bottom, high wing placement
  • Center of Gravity (CG): 2.5" (63mm) back from the leading edge of the wing at the fuselage side
  • Control Throws-
  • Elevator, Up and Down: 3/4" (19mm)
  • Rudder, Left and Right: 1" (25mm)
  • Dumas Product Number: 1813

Includes

All balsa, lightweight colored (black and yellow) tissue covering two 1-3/4" (45mm) lightweight foam main wheels, CA hinges and all hardware to complete this kit, instruction manual, two full-size plan sheets, and acetate sheet for windows


Requirements & Suggestions

  • Indoor power system motor with "A" ratio gear drive
  • 3 channel radio system
  • 2 micro servos
  • 5A ESC w/BEC
  • 2 cell 700mAh LiPo battery
  • 8x6 prop
  • Building and field equipment
