Dumas - Running Hardware 1211, 1213 & 1218 image

Dumas - Running Hardware 1211, 1213 & 1218

Manufacturer: Dumas

Product Code: DUM 2341


Running Hardware 1211, 1213 & 1218

Out of
stock
$490.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's in stock

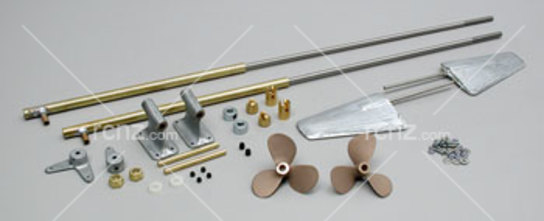

This is the running hardware kit for the Dumas Dauntless 49.5", the AmericanEnterprise 52" and the USS Crocket Gun Boat 51". This is a twin rudder, twinsolid shaft drive for two 6V motors.  Includes: 2 #2702 Drive shaft (Stainless Steel, 3/16"x16", threaded 10-32 at one end) 2 #2803 Stuffing box (brass, with oilite bearings, 7.25" long for 3/16" shaft) 2 #3518 Rudder assembly (Stainless Steel, rudder is 3" long, 5.25" total) 1 #3504 Rudder arm (metal, for 1/8" shaft) 1 #3515 Double rudder arm (metal, bellcrank style, for 1/8" shaft) 2 #3317 Strut assembly (cast aluminum, for 3/16" shafts) 2 #7022 Drive dogs (brass, threaded 10-32) 2 #7014 Set collar (steel, for 3/16" shafts) 2 #7016 Thrust washer (nylon, for 3/16" shaft) 1 #3112 Propeller, right (bronze, 2" diameter for 3/16" shaft) 1 #3113 Propeller, left (bronze, 2" diameter for 3/16" shaft) Screws, nuts, bolts and washers for assembly Instructions for assembly                                                                      Requires: 2  6V electric motors 1  Speed control for 6V motors 1 6V battery Charger for 6V battery                                                                 May use two 3.5cc inboard marine engines (but will also have to buy 2 engine  couplings to fit).
