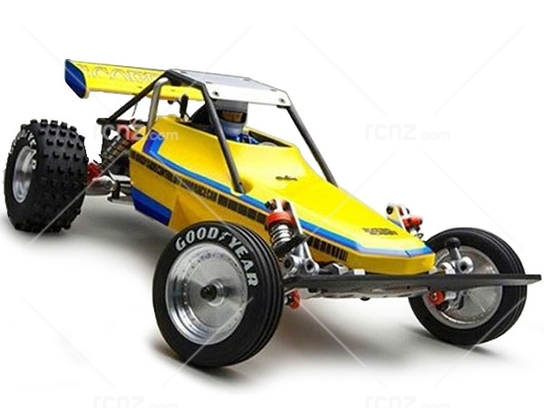

Kyosho - 1/10 Scorpion 2WD Buggy Kit image

Kyosho - 1/10 Scorpion 2WD Buggy Kit

Manufacturer: Kyosho Product Code: KYO 30613


30613 1/10 Scorpion 2WD Buggy Kit

price
$499.00

 Dispatch
2 - 6 Business Days

FEATURES

Chassis: 6061 aluminum, ladder frame design with countersunk
surface that allows screws to set flat
Drive: Rear wheel
Gearbox: Preassembled two piece aluminum with built-in differential
gear for easy maintenance, ball diff (not included) from the
Kyosho Ultima RB may be installed as an upgrade
Gears: Nylon and sintered alloy, 48P
Shocks: Aluminum body, oil-filled with stainless shafts
Shock Towers: 6061 aluminum
Wheels: Molded plastic with satin chrome finish
Tires: Front; ribbed with realistic internal design, 75x20mm
Rear; block pattern with inner foam, 85x41mm
Suspension Arms: 6061 aluminum
Body: Clear polycarbonate, nylon rear wing
Ball Bearings: Full set, 14 total
Radio Box: Compatible with most current battery types



INCLUDES

Scorpion Racing Buggy Kit with Clear Body, Shock, Tires, Wheels
Driver Figure Head, Rear Wing. Hex Hardware, Instruction Manual
and Decals



REQUIREMENTS

Radio: 2-channel
ESC: Compatible with selected motor
Motor: 540 class 30-27 turns recommended
Battery: 7.2V NiMh stick pack
Battery Charger:
Paint, building and track equipment



SPECIFICATIONS

Vehicle;
Length: 15.7" (398mm)
Width: 9.3" (236mm)
Height: 5.7" (145mm)
Wheelbase: 10.3" (263mm)
Front Tread: 7.8" (198mm)
Rear Tread: 7.7" (195mm) center of tires, measured side-to-side
Gear Ratio: H setting 6.9:1. L setting 8.3:1, 2 combinations included
Weight: 2.17lbs (985g) approx. without radio equipment & battery
Body;
Length: 11" (279mm)
Width: 4.5" (115mm)
Height: 2" (51mm) behind driver
