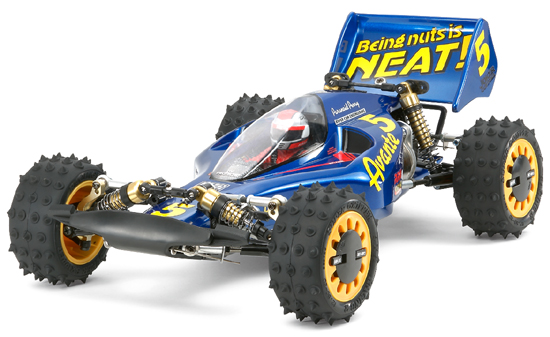

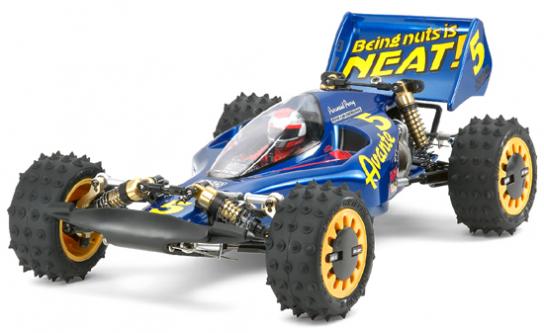

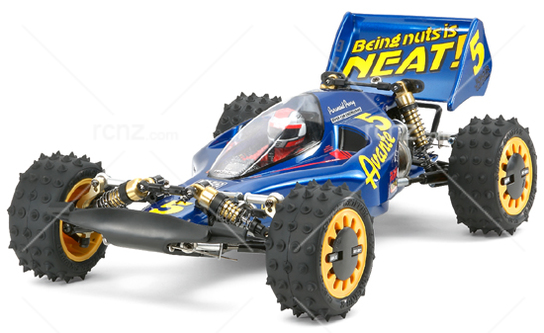

Tamiya - 1/10 Avante 2011 4WD Re-Release Kit image

Tamiya - 1/10 Avante 2011 4WD Re-Release Kit

Manufacturer: Tamiya Product Code: 58489


58489 1/10 Avante 2011 4WD Re-Release Kit

price
$680.00

 Dispatch
Out of Stock In-Stock Alert

In March 1988, Tamiya released an electric R/C 4WD racing buggy called the "Avante" and it has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya's first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.

The Avante was a distinctive R/C machine which featured an innovative design. After 20 years, some of the Avante's mechanisms have become standard features on modern R/C cars. The ultimate pure racing buggy returns in 2011.

Product Specifications (Specifications subject to change)

TypeDetail
Scale 1/10
Construction type assembly kit
Terrain use off-road
Drive-train 4WD
Drive type shaft
Drive line universal
Differential type gear
Suspension fully independent double wishbone
Steering mechanism bell-crank
Shock damper oil-filled damper
Shock damper material aluminum
Tire type rubber
Tire tread pin spike
Body material Clear Polycarbonate
Chassis material carbon fiber plate
Electronic Speed Control (ESC) not included
ESC model n/a
LED Light buckets no
LED lights no
Motor 540-brushed type
Bearings shielded ball bearing
Adjustable camber yes
Adjustable toe angles front and rear
Adjustable ground clearance yes
Adjustable gear ratio yes
Adjustable wheelbase fixed
Adjustable track width fixed
Adjustable shock angle yes
Special feature 1 Length: 420mm
Special feature 2 Width: 240mm
Special feature 3 Height: 115mm
Special feature 4 Wheelbase: 260mm
Special feature 5 Tread (L/R): 200mm
Special feature 6 Minimum Ground Clearance: 40mm
Special feature 7 Weight: 1300g
Special feature 8 Double-Deck Frame
Special feature 9 Tires (F/R): 38/88mm
Special feature 10 Gear Ratio: 1:8.33
Requires A 7.2 battery & charger
Requires B 2-channel radio gear
Requires C polycarbonate paint
Requires D electronic speed control

CLICK HERE for a radio, servo, battery, charger & paint combo
