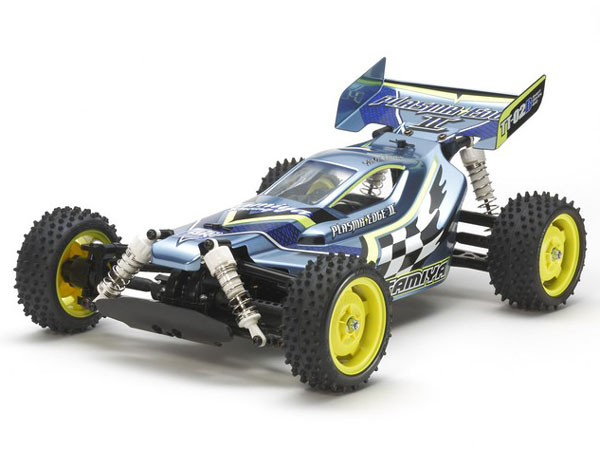

Tamiya - 1/10 Plasma Edge II 4WD TT-02B Kit image

Tamiya - 1/10 Plasma Edge II 4WD TT-02B Kit

Manufacturer: Tamiya Product Code: 58630


58630 1/10 Plasma Edge II 4WD TT-02B Kit

Out of
stock
$270.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's back in stock

Description:

This is an updated version of the classic Plasma Edge buggy body. It features new stickers and a tweaked body design. It is mounted on the easy-to-build and maintenance TT-02B chassis. The TT-02B uses the TT-02 as its base, adding longer suspension arms, CVA shock units, and buggy bumpers to give it great off-road performance. Of course, it retains the TT-02's excellent drivability and ease of assembly and maintenance, while motor cooling ducts and receiver case add to the model's durability.

Feature:

  • Scale: 1/10
  • Construction type: Assembly kit
  • Terrain use: Off-road
  • Drive-train: 4WD
  • Drive type: Gearbox
  • Drive line: Dog bone
  • Differential type: Gear
  • Suspension: Fully independent double wishbone
  • Steering mechanism: Bell-crank
  • Shock damper: Oil-filled damper
  • Shock damper material: Plastic
  • Tire type: Rubber
  • Tire tread: Pin spike
  • Body material: Polycarbonate
  • Chassis material: Plastic
  • Electronic Speed Control (ESC): No included
  • ESC model: RCNZ 320A
  • LED Light buckets: No
  • LED lights: No
  • Motor: 540-brushed type
  • Bearings: Plastic bushing
  • Adjustable camber: Fixed
  • Adjustable toe angles: Front only
  • Adjustable ground clearance: Yes
  • Adjustable gear ratio: Yes
  • Adjustable wheelbase: Fixed
  • Adjustable track width: Fixed
  • Adjustable shock angle: Fixed
  • Special feature 1: Torque-tuned motor is included!
  • Special feature 2: The TT-02B Chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 Chassis.
  • Special feature 3: Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity.
  • Special feature 4: 4-wheel double wishbone suspension features long arms and white color CVA shock units, and is combined with high-grip square spike tires to give excellent traction.
  • Special feature 5: Features fluorescent yellow star-dish wheels.
  • Special feature 6: Includes stickers to decorate the body, plus masking stickers for use when painting.
  • Special feature 7: Front and rear gearboxes have differentials to ensure smooth cornering.

Vehicle Specification:

  • Length: 370mm
  • Width: 250mm
  • Height: 160mm
  • Wheelbase: 266mm
  • Front Tread: 217mm
  • Rear Tread: 208mm
  • Front Tire Width / Diameter: 32 / 82mm
  • Rear Tire Width / Diameter: 41 / 82mm
  • Gear Ratio: 10.71: 1 (kit pinion gear)

Include:

  • Tamiya 1/10 TT02B Plasma Edge II 4WD Off Road Chassis Kit EP(1 Set)
  • Motor
  • Wheels(4Pcs)
  • Tires(4Pcs)
  • Body
  • Decals
  • Instruction

Require:
