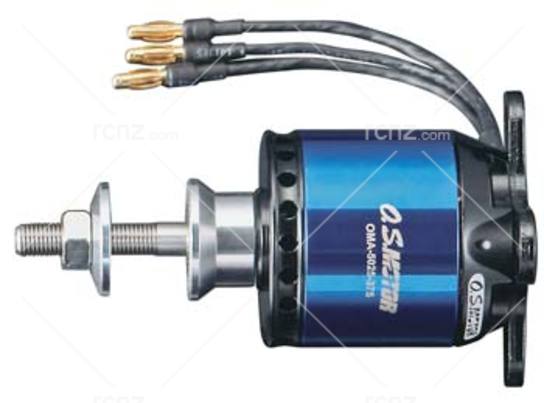

O.S - Brushless Motor OMA 5025-375

Manufacturer: O.S Engines Product Code: OSMG9550


9550 Brushless Motor OMA 5025-375

Out of
stock
$320.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's in stock

Legendary O.S. quality in a brushless electric motor! This one is intended as a replacement of .55 - .61 class 2 stroke and .91 class 4 stroke engines, using 6 to 8 cell Li-Po packs and will provide strong, linear power.

This new range of brushless motors features a unique. O.S. designed cooling system, a strengthened centre body and large ball bearings. The propeller driver has been machined from stainless steel for both strength and durability.

Each motor is balanced during manufacture for optimum running and reliability.

Supplied with a rear mount and 4mm gold connectors as standard accessories.

Specification

  • Weight: 405g
  • Turns: 16
  • Resistance: 27.5 mOhms
  • Bearings: 3
  • Current Range: 50 - 60A
  • ESC Timing Degrees: 20 - 30 Degrees
  • KV RPM: 375
  • Max Current: 90A for 10 secs
  • Pole: 14 Poles
  • Power Output: 1550W
  • Nominal Voltage: 25.9 - 29.6v (7 - 8S Li-Po)
  • No Load Current: 2.0A
  • Max Efficiency: 85%
  • Shaft dia: 6mm
  • Shaft Length: 11.5mm
