Surpass - 3536 Brushless Outrunner Motor 1050kv (.25 nitro size)
Manufacturer: Surpass Hobby Product Code: C3536
3536 Brushless Outrunner Motor 1050kv (.25 nitro size)
SURPASS HOBBY C3536 brushless motor for RC airplane. High quality and efficiency great choice for RC airplane.
Features:
14 Pole high torque motor design
3536 1050KV high power motor
Precision balanced rotor, smoothness for best reliability and maximum RPM
50A large overload ESC with 5V 3A BEC
Precision engineered for maximum energy conversion
Specifications:
Item.: C3536 brushless motor
Motor:
KV(RPM/Volt): 1050KV Optional
Motor type: Out-runner brushless
Max watts: 680W
Voltage range: 7-15V
Max current: 50A
Rotor poles: 14
No load Current: 1.8A
Resistance: 0.038
Motor Size: ¢35 * 36mm
Stator size: 2814
Motor weight: 159.2g
Recommended prop: 9*4.5 / 10*4.7 / 9*5
Connector: 3.5mm banana
Suitable for: 1-1.5kg airplane

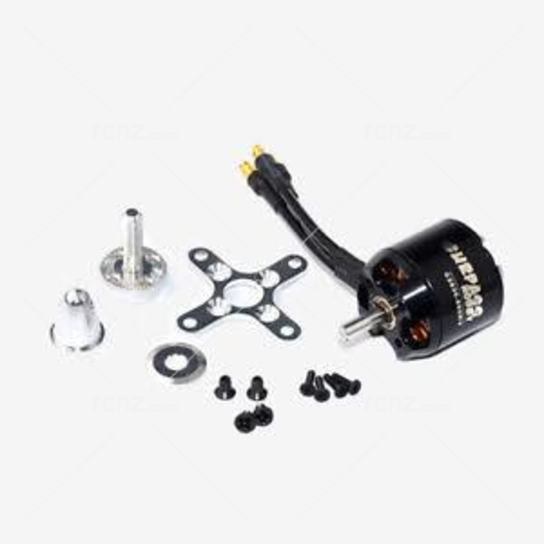

Packing list:
1 x C3536 brushless motor
1 x Mounting Parts Set
