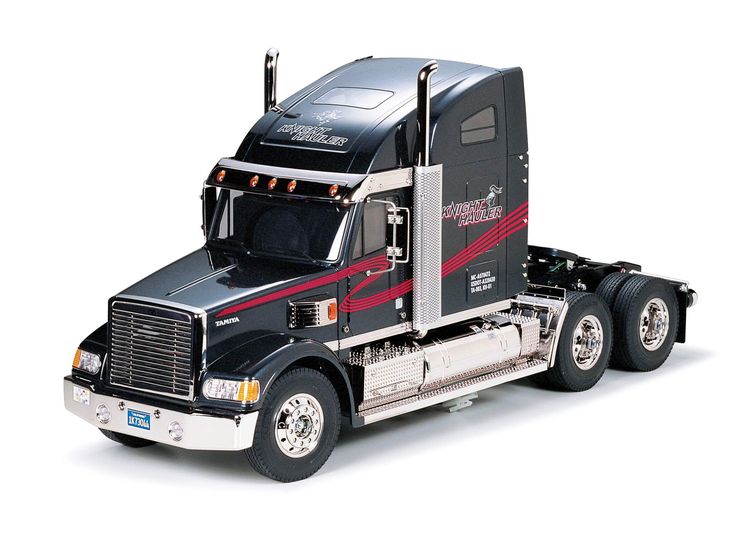

Tamiya - 1/14 Knight Hauler image

Tamiya - 1/14 Knight Hauler

Manufacturer: Tamiya Product Code: 56314


56314 1/14 Knight Hauler R/C truck

price
$599.00

 Dispatch
Out of Stock In-Stock Alert

This 1/14 scale R/C Tractor Trucks Item features an originally designed truck body. Hood, large roof spoiler, interior, and lights (clear orange parts), which have been artistically rendered in exquisite detail. Grill, tank, exhaust and steps have been beautifully rendered with metal plated parts. Kit includes stickers and 540 motor. 7.2V battery pack and R/C system are sold separately.

About the Tractor Truck Multi-Function Control Unit

Tamiya presents incredible sound and action options for the Tractor Truck Knight Hauler or any 1/14 scale R/C Tractor Truck with the R/C Tractor Truck Multi-Function Control Unit (Item #56511). This system, when mounted on the truck is located inside the cabin with speaker to the front and the MFC-01 unit to the rear. The control unit is mounted inside the left tool box for easy access. The Multi-Function Control Unit is sold separately.

A 4-channel R/C system activates all functions

By using your transmitter sticks and the trims you can control the truck movements (forward/backward running and turns), horn, motorized support leg (sold separately), headlights, position lamps, roof lamps and speed indicators. You can also activate the back lamp, tail lamps and blinkers/hazard lamps as well as engine revving.

20 LED for 9 light functions

All lamps employed with the multi function unit are high brightness type LED. They are employed to reproduce headlights, position lamps, roof lamps, speed indicators, fog lamps, back lamp, tail lamps and blinkers/hazard lamps, which can be turned on/off with the transmitter.

White LED Headlights, Fog lamps, Position lamps, and Back lamp
Orange LED Roof lamps, Blinkers, Hazard lamps, and Speed indicators
Red LED Tail lamps

24 Radio-Controlled Sound Effects

The multi function unit offers 24 radio-controlled sounds that have been digitally recorded from an actual tractor truck. The R/C Tractor Truck Multi-Function Control Unit is capable of the following functions:

Engine Engine starter, Idling, Revving, Running with semi-trailer, Running without semi-trailer, and Engine stop
Air Air dryer, Up-shifting, Down-shifting, Air discharging 1, Air discharging 2, Short horn, Continuous horn, and Parking brake
Electric Sounds Alarm 1, Alarm 2, Turn signal 1, Turn signal 2, Hazard, and Back alarm
Exhaust brake Exhaust brake
Brakes Brakes
Coupler Coupler attachment, Coupler detachment

The Knight Hauler can be equipped with 4 different semi-trailers (available separately)

Tamiya proposes 4 different semi-trailers that can be adapted to the Knight Hauler: A boxcar semi-trailer, a tank-trailer, a flatbed semi-trailer and a pole-trailer. When coupled with the Knight Hauler, you obtain a 1m long realistic truck. When using the multi function unit, which contains an electronic speed controller, you can run your truck very slowly. With sound and light effects, you will swear this is an actual truck.

 Specifications

  • Total length: 630mm
  • Total width: 186mm
  • Clearance: 19mm
  • Weight Fully-Equipped: about 3,1kg (without multi function unit)
  • Wheelbase: 476mm
  • Tread F/R: 156/138mm
  • Chassis Material: Aluminum and polycarbonate plastic
  • Chassis Shape: Ladder Type Frame
  • Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
  • Caster Angle-F/R: 0deg/0deg
  • Camber Angle-F/R: 0deg/0deg
  • Toe Angle-F/R: 0deg/0deg
  • Damper: F/R Aluminum Dummy Dampers
  • Drive train: 2-axle
  • Transmission: 3-gear transmission (gear shifting operated via transmitter)
  • Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
  • Diff. gear system: F/R Bevel Gear Diff
  • Motor: RS540 (standard in the kit)
  • Tire Width: F/R both 22mm
  • Tire Diameter: F/R both 88mm
  • Requires eight R6/AA/UM3 batteries for transmitter (sold separately).
