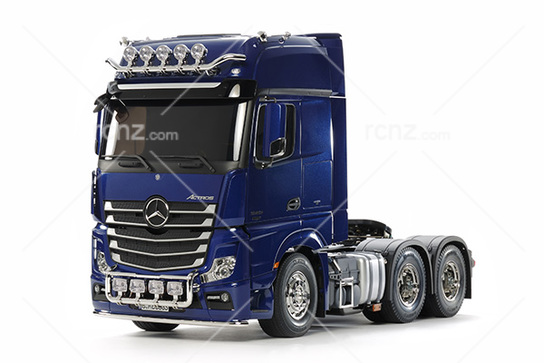

Tamiya - 1/14 Mercedes-Benz Actros 3363 Pre-Painted Pearl Blue Kit image

Tamiya - 1/14 Mercedes-Benz Actros 3363 Pre-Painted Pearl Blue Kit

Manufacturer: Tamiya Product Code: 56354

56354 1/14 Mercedes-Benz Actros 3363 Pre-Painted Pearl Blue Kit


Out of Stock In-Stock Alert


The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model's highly detailed pre-painted body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.

Don't have the time, space or confidence to apply a paint job? Then this kit is for you - all body parts are pre-painted in a sumptuous shade of pearl blue, with clear topcoat applied. Assemble, paint small parts in semi gloss black, and your body is ready for use!


  • Pre-Painted Pearl Blue Body Parts
  • This is a 1/14 scale assembly kit of the Mercedes-Benz Actros Gigaspace.
  • Ladder frame chassis can be linked with a semi-trailer via coupler.
  • Highly-realistic suspension recreated with metal leaf springs and friction dampers.
  • Built-in differential gears enable smooth cornering.
  • LEDs can be used to accurately recreate the truck's front and rear lights.
  • Enjoys superb driveabilitythanks to its float-mounted die-cast front axle and reinforced resin rear axle.
  • The powerful form of the truck and its splendid interior are faithfully captured.
  • Attach any of Tamiya's 1/14 Tractor Truck trailers to the Actros 1851 GigaSpace for an exciting combination.
  • A wide variety of Tractor Truck Option Parts are available for you to furthercustomize your machine.


    • Length: 538mm
    • Width: 195mm
    • Height: 305mm
    • Weight (without optional parts): Approx. 3.9kg
    • Wheelbase: 237+103mm
    • Tread: 155mm (Front), 138mm (Rear, Double Tire)
    • Chassis: Aluminum & Polycarbonate Resin Ladder Frame
    • Suspension: Front/Rear Leaf Springs
    • Caster Angle (Front/Rear): 0°/0°
    • Camber Angle (Front/Rear): 0°
    • Toe Angle: 0°(Front & Rear)
    • Dampers: Aluminum Dummy Dampers (Front & Rear)
    • Drivetrain: Rear Double Axle Drive
    • Transmission: 3-gear transmission (gear shifting operated via transmitter)
    • Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
    • Diff. Gear: 3-bevel diff
    • Motor: Type 540
    • Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)


CLICK HERE for a radio, servo, battery, charger & paint combo
