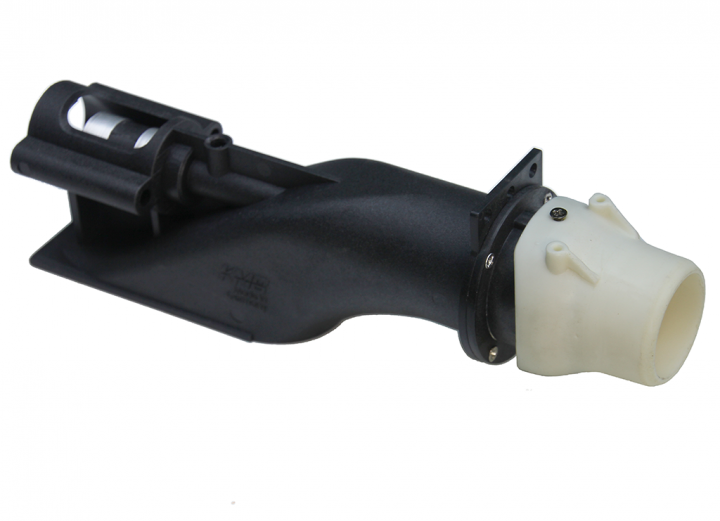

KMB - 28mm Jet Drive with Short Steering Nozzle image

KMB - 28mm Jet Drive with Short Steering Nozzle

Manufacturer: KMB Jet Units Product Code: JET2805


JET2805 28mm Jet Drive with short steering nozzle
Quality German made.

price
$130.00

 Dispatch
1 - 3 Business Days

JET2805 28-mm-Jet with short steering nozzle

with short nozzle for right-left-steering
without reverse

Design Features:
Inlet channel with impeller
Ballbearing motorside
Bronze and Nylon bushing waterside
Integrated motor mount for 700 class motor
Threaded studs for motor mounting
Rubber coupling 4/5 mm

Adapter flanges are available for other motors.

operational range 15.000 - 20.000 rpm
static thrust 200 - 400 W
13.000-16.000 rpm
2,5 - 4 kp
tunnel dimensions length: 130 mm
width: 37 mm
height: 45 mm
weight: ca. 120 g
steering system dimensions length with nozzle anf flange: 43 mm
length: 35 mm
width: 40 mm
height: 41 mm
flange diameter: 42 mm
impeller shaft diameter 4 mm
recommended motors KMB 700 9,6V BB Neodym 66 mm long (identical with Graupner 9,6 V BB Turbo Neodym)

KMB 700 12V BB Neodym 60 mm long (identical with Robbe Power Plus 710/12 Simprop Power Speed 7/14)

KMB 800 16 V (identical mit Graupner 820 BB Turbo)
