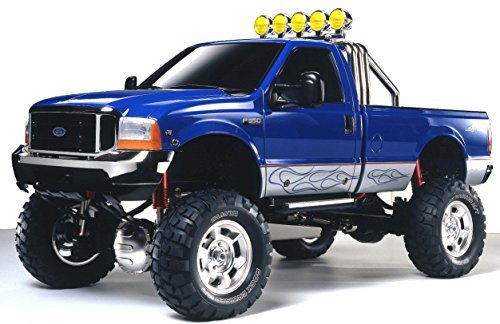

Tamiya - 1/10 Ford F-350 High-Lift 4X4 Kit
Manufacturer: Tamiya Product Code: 58372
58372 1/10 Ford F-350 High-Lift 4X4 kit - 3 speed
| Electric R/C assembly kit of one of the most representative American pick-up trucks, the Ford F-350. The model features realistic ladder frame, 3-speed transmission and shaft drive 4WD system. Highly detailed injection molded body and large diameter wheels enhance the stylish high-ground-clearance look. Original marking stickers add to the truck's overall realism. |  |
Click here to see how the 3Speed transmission works on this vehicle.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | multi-purpose |
| Drive-train | 4WD |
| Drive type | gearbox |
| Drive line | solid axle |
| Differential type | gear |
| Suspension | leaf spring |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | aluminum |
| Tire type | rubber |
| Tire tread | chevron |
| Body material | ABS Plastic |
| Chassis material | aluminum |
| Electronic Speed Control (ESC) | not included |
| ESC model | n/a |
| LED Light buckets | yes |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | metal and plastic bushings |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | fixed |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | Durable ladder frame chassis features steel channel and resin crossmembers for high strength |
| Special feature 2 | Adjustable front and rear leaf spring suspension system equipped with friction dampers |
| Special feature 3 | 3-speed transmission allows gear changing and realistic low-speed driving |
| Special feature 4 | Propeller shafts and slipper clutch efficiently transfer power to all wheels |
| Special feature 5 | Differential may be easily locked in place to enable improved off-road performance |
| Special feature 6 | Highly-detailed injection-molded body |
| Special feature 7 | Quick-access battery compartment enables easy battery changes without removing body |
| Special feature 8 | 4-channel transmitter, ESC, and running battery & charger are all separately required |
| Special feature 9 | separately available Pick-Up Truck Multi-Function Unit MFC-02 (ITEM 53957) |
| Requires A | 4-channel radio gear |
| Requires B | 7.2 battery & charger |
| Requires C | TS plastic model paint |
| Requires D | electronic speed control |
