Tamiya - 1/10 Toyota Hilux High Lift 4x4 3-Speed Kit

Manufacturer: Tamiya Product Code: 58397

58397 1/10 Toyota Hilux High Lift 4x4 3 speed kit

Out of
Out of Stock
In-Stock Alert
We'll email you when it's in stock

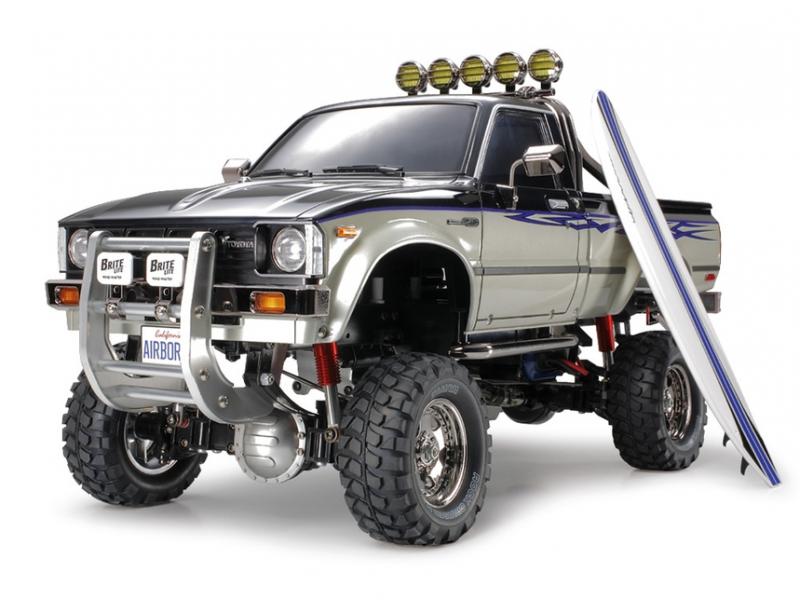

One of the most popular pick-up trucks of all time, the Toyota Hilux, follows the Ford F-350 as the 2nd new R/C pick-up truck release. Tamiya spared no expense in developing this truck to be the most realistic ever, with a ladder frame chassis and 4WD system just like the actual truck. The 3-speed transmission provides lots of enjoyable driving options and a plethora of metal parts such as the front guard, leaf springs, and aluminum friction dampers make for a very interesting assembly kit. The large diameter tires provide impressive ground clearance and enhances the realistic resin body's muscular look. Metal-plated parts for the roll bar, front grill, front/rear bumpers, and muffler provide extra detail highlights throughout the model as well. To top off this unique model, parts for a surfboard are also included.

■Front Styling
Headlights and turn signals can be recreated using separately available LEDs. Maker emblems are recreated with metal-transfer markings.
■Roll Bar Lights
Metal-plated roll bar features 5 light positions, into which LEDs can be installed.
■Front Guard with Fog Lights
Front guard features fog lights, which can be modeled with either light covers on or off.
■Realistic Metal-Plated Wheels
Newly-designed 3-piece 5-spoke wheels feature a stylish gun metal color.
■Rear Styling
Highly accurate injection-molded resin body features lots of metal-plated parts such as the muffler. LEDs can also be installed for realistic taillights.
■3 Types of Surfboard Markings
Choose from 3 different kinds of markings to create your own custom surfboard.
■Metal Leaf Springs
Realistic leaf springs are made from 5 individual panels and can be easily adjusted after assembly.
Differential features tough metal diff gears and can be locked to provide awesome off-road ability.
■Assembly 3-Speed Transmission
3-speed transmission provides excellent low speed performance and realistic gear changes. A slipper clutch protects the gears from shocks to ensure smooth operation.


  • Scale : 1/10
  • Construction type : assembly kit
  • Terrain use : multi-purpose
  • Drive-train : 4WD
  • Drive type : gearbox
  • Drive line : solid axle
  • Differential type : gear
  • Suspension : leaf spring
  • Steering mechanism : bell-crank
  • Shock damper : friction damper
  • Shock damper material : aluminum
  • Tire type : rubber
  • Tire tread : block-pattern
  • Body material : ABS Plastic
  • Chassis material : aluminum
  • Electronic Speed Control (ESC) : Not included
  • LED Light buckets : yes
  • LED lights : no
  • Motor : 540-brushed type
  • Bearings : metal and plastic bushings
  • Adjustable camber : fixed
  • Adjustable toe angles : front and rear
  • Adjustable ground clearance : fixed
  • Adjustable gear ratio : yes
  • Adjustable wheelbase : fixed
  • Adjustable track width : fixed
  • Adjustable shock angle : fixed

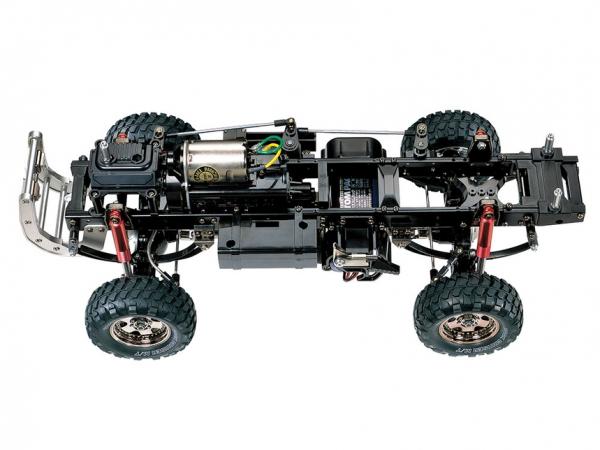

  • Special feature 1 : Durable ladder frame chassis features steel channel and resin crossmembers for high strength
  • Special feature 2 : Adjustable front and rear leaf spring suspension system equipped with friction dampers
  • Special feature 3 : 3-speed transmission allows gear changing and realistic low-speed driving
  • Special feature 4 : Propeller shafts and slipper clutch efficiently transfer power to all wheels
  • Special feature 5 : Differential may be easily locked in place to enable improved off-road performance
  • Special feature 6 : Highly-detailed injection-molded body complete with new parts
  • Special feature 7 : Manufacturer logos depicted with metal transfer stickers
  • Special feature 8 : Quick-access battery compartment enables easy battery changes without removing body
  • Special feature 9 : 4-channel transmitter, ESC, and running battery & charger are all separately required
  • Special feature 10 : separately available Pick-Up Truck Multi-Function Unit MFC-02 (ITEM 53957)
  • Requires A : 7.2 battery & charger
  • Requires B : 4-channel radio gear
  • Requires C : electronic speed control
  • Requires D : TS plastic model paint
