EV-Peak - CD1XR 10A AC/DC Multi-Function Charger
Manufacturer: EV-Peak Product Code: EV-CD1XR

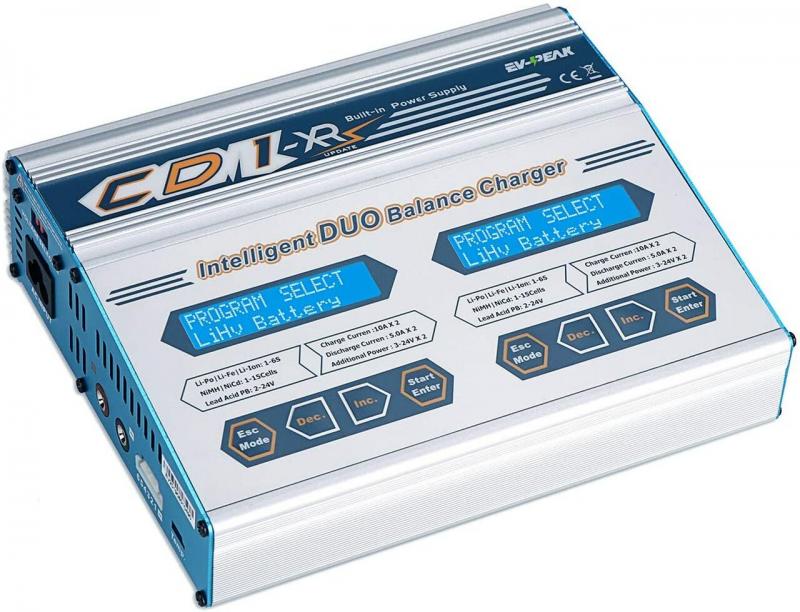

CD1XR 10A AC/DC Multi-Function Charger
Like the “carbon” element is the fundamental component of life, C Series charger are the first round intelligent balance chargers which are designed for worldwide RC hobby users, and form the basis of the following balance chargers of EV-PEAK. This charger adopts the 32-bit MCU instead of commonly found 8-bit MCU, making operation faster and much more accurate.
CD1-XR charger is an AC/DC DUO balance charger/discharger,it supports 1-6 cells LiPo/LiHV/LiFe batteries and 1-15 cells NiMH/NiCd batteries,maximum 10A charge per channel.
- Powerful Dual 100W charging circuits.
- 20 Battery memory profiles
- Powerful 32 Bit CPU Core
- AC/DC Dual Input
- LiPo/LiHV/LiFE/NiMH/NiCD/PB Battery support
- Built in Balancing circuit.
- Two High speed cooling regulated cooling fans.
- High Power Discharge circuit.
- PC Communication available via USB.
What's In The Box?
- CD1-XR Dual Charger
- AC Power Cord
- DC Power Cord
- 2x JST-XH Balance Boards
- 2x Deans T-Plug Charge Cables
- Instructional Manual
LiHV Battery Support
This high-end charger supports the new LiHV chemistry battery! Charge, discharge and storage charge your LiHV’s
Charge two batteries at once. Even if they are not the same chemistry, voltage, or capacity. This charger has 2 individual charge ports and plugs directly into the wall. It also can be connected to a DC power source such as a 12V car battery or a DC Power Supply.
The Charger also features LiPo Balance Charge, LiPo Storage, and LiPo Discharge modes.
EV-Peak is known for their great reliability. They use the best internal components and circuitry available to create long lasting products. Their reliability rivals that of name brand manufacturers such as Hitec, Duratrax, Traxxas, etc. And all this is backed by an easy 1 year warranty!
High Power Output:
This charger boasts 100Watts of power per port! Most chargers such as Duratrax only offer 40Watts per channel. Some may even offer 50Watts. But this charger leaves them all in the dust, allowing your packs to charge faster! It offers a 10Amp charge rate.
Digital Power Mode
Each Port can act as a power supply! Use this function to power external items such as a pit light, tire truer, motor checker, charger, or anything else that runs off of DC power. Both the Voltage and Amperage are adjustable to suit the needs of the connected device.
Lithium Cell Check
Check the voltage of a Lithium battery’s cells when plugged into the balance port. Simply hold the INC button when in a Lithium menu. The screen will provide a readout of each cells voltage.
Adjustable Cutoff Voltage
The voltage per cell at which the charger stops charging the battery can be adjusted for fine user precision. Adjustments available for LiPo, LiHV, LiIo, LiFe, Pb batteries. (Adjustment values listed below)
AC Input voltage AC 100V-120V OR 220V-240V (selectable via switch)
DC Input voltage DC 11.0V-18.0V
Charge current 0.1A-10.0A*
Discharge current 0.1A-5.0A*
Charge power max.100W x 2
Discharge power max. 20W x 2
Balance current max. 400mA
Balance tolerance ±0.01V
NiCd/NiMH battery cell count 1-16cells
Lithium battery types Li-Po, Li-HV, Li-ion, Li-Fe
Lithium battery cell count 1-6series
Pb battery voltage 2V-24V
mAh Capacity: 100mAh – 25,000mAh (Can charge batteries w/ higher capacity, but restarting the charge process will be required once maximum is reached)
Digital Power 3V-24V
Dimensions 204 x 170 x 60mm
* Charger has 10A/100W limit per port, whichever is reached first. Charger will auto-adjust the amperage if the max wattage is reached. For example, charging a 4S LiPo: 100Watts / 14.8Volts = approx. 6.7Amp max charge rate.
