EV-Peak - SD1 AC/DC Duo 500W 30 Multi Balance Charger
Manufacturer: EV-Peak Product Code: EV-SD1

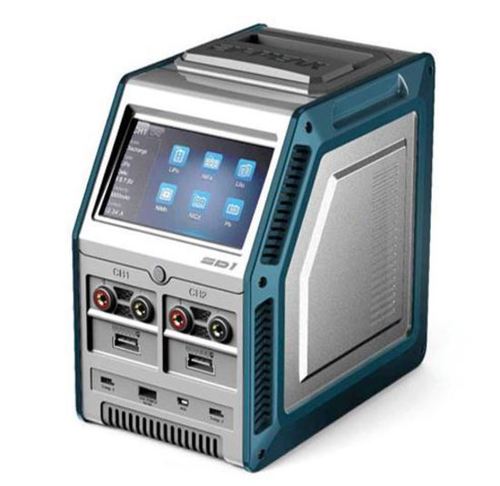

SD1 AC/DC Duo 500W 30 Multi Balance Charger
Features
Built-in 750W AC power supply
Colorful human-computer interaction interface
Large screen ,272*480dpi
Active OS makes operation easy and clear
Visual UI,multi-language
Active PFC to strong adapt to the grid
Automatic detection and soft start function
Short circuit protection,over current protection,over voltage protection,reverse polarity protection
Visual UI real-time monitor the charge and discharge process
PC control,firmware upgrade available
High efficiency,high power smart cooling system
Handles for easy carrying
| DC input voltage AC input voltage |
11.0V-24.0V 100V-240V |
| Charge power |
DC input:500W x2 AC input:300W x2 |
| Discharge power | max.30W |
| Charge current | 0.1~30.0A |
| Discharge current | 0.1~30.0A |
| Regenerative discharge | 30.0A |
| Balance current | 400mA/cell |
| LiPo/Li-Ion/LiFe battery cell count | 1-6S |
| NiMH/NiCd battery cell count | 1-15cells |
| Pb battery voltage | 2V-24V |
| Weight | 2850g |
| Dimension | 209*209*140mm |
