RCNZ - 700 Size DC Motor 12V image

RCNZ - 700 Size DC Motor 12V

Manufacturer: RCNZ Product Code: YM2774


700 size DC motor 6-12V
Suited for KMB Jet Drive

price
$30.00

 Dispatch
1 - 3 Business Days

Standard (High Power) D.C. Motors 18800 RPM

Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Voltage
No load 12.0
Speed (RPM) 18800
Current (AMP) 2.6
Operating Range (V) 6-12

At Stall

Torque (kg/cm) 4.9
Current (AMP) 92

At Max Efficiency

Efficiency (%) 71
Power (W) 107
Speed (RPM) 15520
Torque (kg/cm) .67
Current (A) 12.8

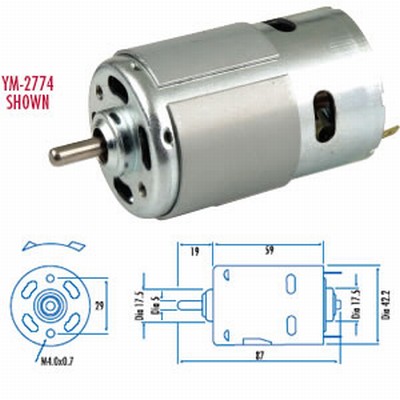

Dimensions

Diameter (mm) 42
Total Length (mm) 78
Shaft Length (mm) 19
Shaft Diameter (mm) 5.0
Mounting Thread M4
