Surpass - 3660 Brushless Water-Cooled Motor 3500kv

Manufacturer: Surpass Hobby Product Code: C3660M

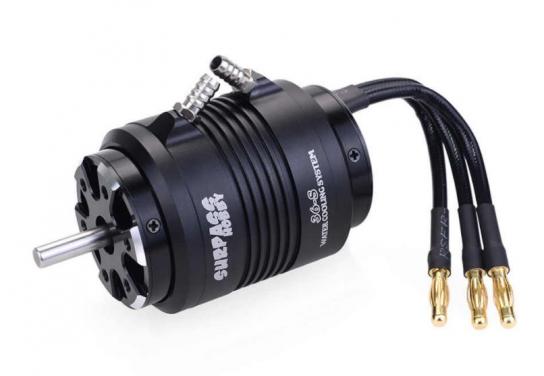

3660 Brushless Water-Cooled Motor 3500kv

price
$95.00

 Dispatch
In Stock Now - Ships within a Day

Description:
Product Size: Length 60mm,diameter 36mm,shaft diameter is 5mm
Product Weight: Approx195g
Packaging Size: 145x88x55mm
Recommendation ESC: 90A ESC
Fit For: 800-900mm RC Boats

Specification:
KV: 3500kv
Max Voltage: 17V
Max Amps: 70A
Max Power: 1200W
Winding Type: WYE
Rotor Poles: 4
Number of Turns: 2Y
No Load Current: 3.1A
Max RPM: 60000

Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Exactness balanced rotor, smoothness for best reliability and maximum RPM
Stator - Super Thin (0.2mm) Laminations
Removable/Replaceable Rotor
Exactness Engineered for Maximum Energy Conversion

Package included:
1 x 3660 3500KV Brushless Motor

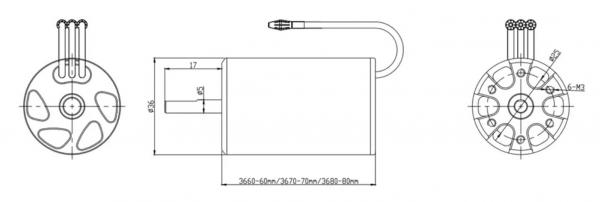

3660c

3660a
