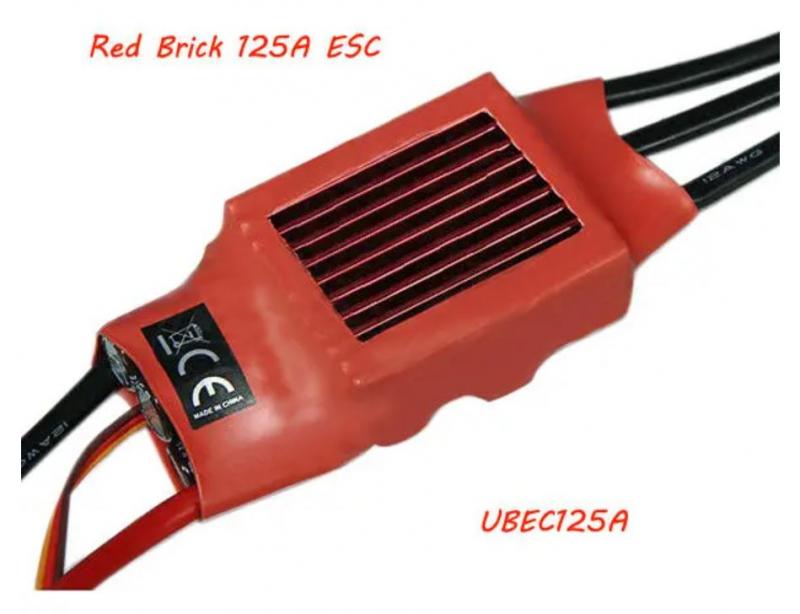

RCNZ - 125A Red Brick Brushless ESC 5A/BEC

Manufacturer: RCNZ Product Code: RCNZ125AESC

125A Red Brick Brushless ESC with 5V BEC


In Stock Now - Ships within a Day

The Red Brick ESCs wont win first place for style, though they will take top points for simplicity and reliability. With a basic set of programming features these ESCs are a perfect solution for anyone looking for a basic yet robust speed controller.

The Red Brick ESC has been engineered with heat dissipation in mind. featuring an over sized Aluminium heat sink for the FETS and and individual heatsink for the MCU the Red Brick ESC is slightly larger than many ESCs in its class, however this compromise in size is aimed at assisting to eliminate the problems associated with over heating.

• Smooth, linear throttle response
• Uses powerful, high performance MCU
• Multiple self protection functions: abnormal voltage input, low battery protection, over thermal protection, throttle signal loss
• Safe start, motor will not run until ESC is armed correctly

Max Amps: 125A
Burst Amps: 140A
UBEC: 5V / 5A
Cells: 2~7S 7.4~25.9V Lipoly
Size: 78x38x20mm
Weight: 108g
