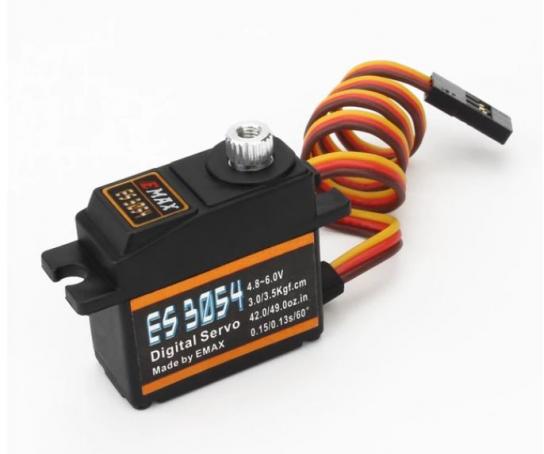

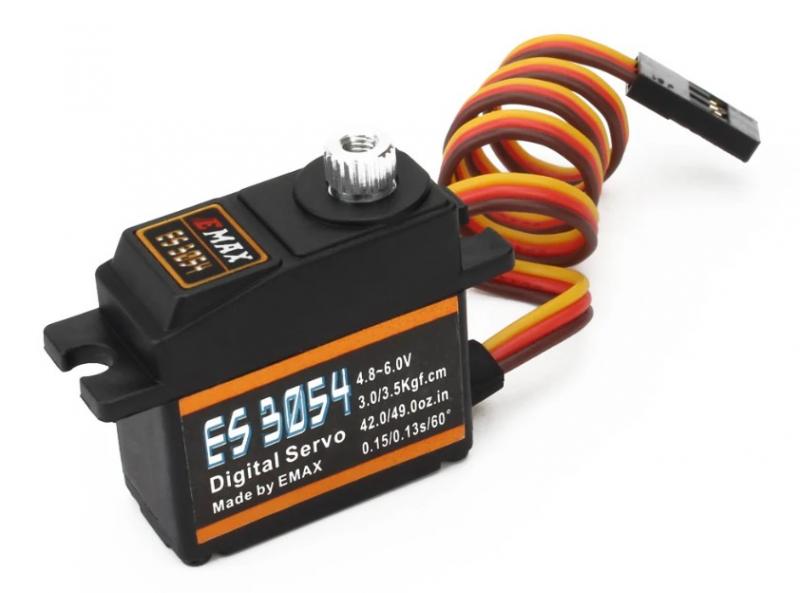

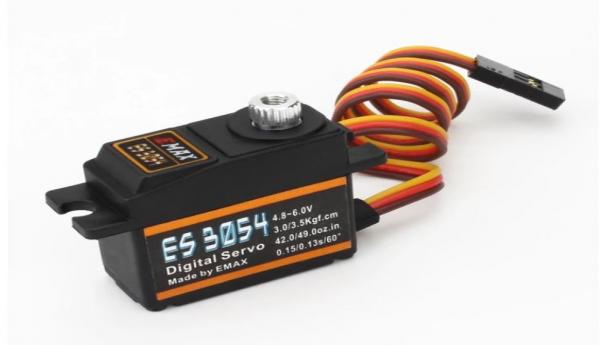

Emax - ES3054 20g Metal Geared Mini Digital Servo
Manufacturer: Emax Model Product Code: ES3054
ES3054 20g Metal Geared Mini Digital Servo
Specifications:
Brand Name | EMAX | |
Item Name | ES3054 | |
Operating Voltage | 4.8V - 6.0V | |
STD Direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | |
Stall Torque | 4.8V | 3kg.cm Max |
Operating Speed | 4.8V | 0.15 sec/60° at no load |
Stall Torque | 6.0V | 3.5kg.cm Max |
Operating Speed | 6.0V | 0.13 sec/60° at no load |
Size | 28.45x13.00x31.10mm | |
Weight | 20g | |
Plug Available | FUT;JR | |
Flower Head | 23T | |
Maximum Travel | 145°±10° (700-2300μ sec) | |
Others | Bearing; Metal; Digital |
