Tamiya - 1/14 Ford Aeromax R/C Truck Kit

Manufacturer: Tamiya Product Code: 56309


56309 1/14 Ford Aeromax R/C Truck Kit

price
$638.00

 Dispatch
2 - 6 Business Days

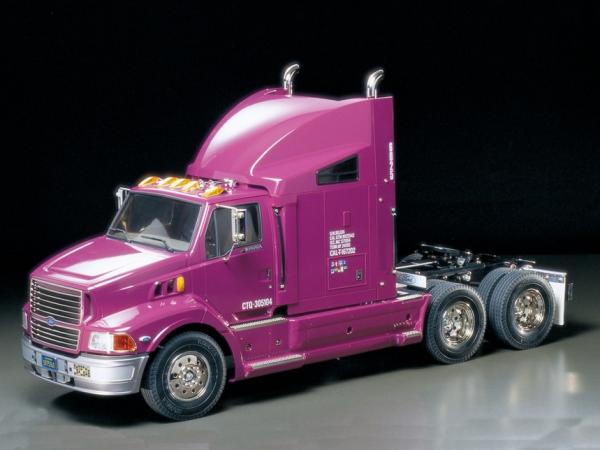

The massive American rig has joined Tamiya's 1/14 scale tractor truck stable. Tamiya's model of the Ford Aeromax tractor truck boasts both large scale realism and authentic functions. Servo-shifted 3-speed transmission is mounted at the front of the aluminum ladder frame.

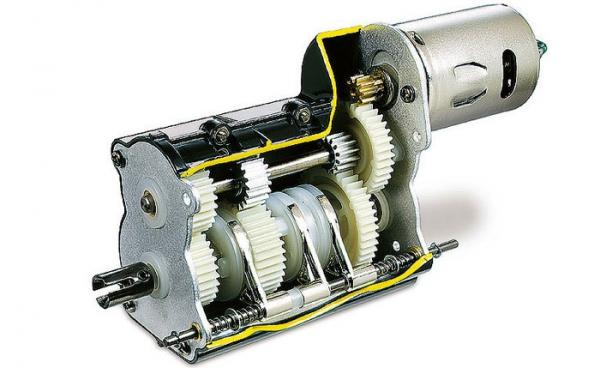

Click HERE to see how the 3Speed transmission works on this vehicle.


  • Scale : 1/14
  • Construction type : assembly kit
  • Terrain use : on-road
  • Drive-train : 2-axle semi
  • Drive type : 3-speed
  • Drive line : solid axle
  • Differential type : gear
  • Suspension : leaf spring
  • Steering mechanism : bell-crank
  • Shock damper : friction damper
  • Shock damper material : aluminum
  • Tire type : rubber
  • Tire tread : radial
  • Body material : ABS Plastic
  • Chassis material : aluminum
  • Electronic Speed Control (ESC) : not included
  • ESC model : n/a
  • LED Light buckets : yes
  • LED lights : no
  • Motor : 540-brushed type
  • Bearings : metal and plastic bushings
  • Adjustable camber : fixed
  • Adjustable toe angles : fixed
  • Adjustable ground clearance : fixed
  • Adjustable gear ratio : fixed
  • Adjustable wheelbase : fixed
  • Adjustable track width : fixed
  • Adjustable shock angle : fixed
  • Special feature 1 : Length: 24.17 inches (614mm) Width: 7.48 inches (190mm)
  • Special feature 2 : Wheelbase: 17.60 inches (447mm)
  • Special feature 3 : Tread F/R: 156/138mm
  • Special feature 4 : Tire Width: F/R both 22mm
  • Special feature 5 : Weight: 6.39 lbs. (2900g)
  • Special feature 6 : Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
  • Special feature 7 : Wheels & Tires: Chrome/Radial
  • Requires A : 7.2 battery & charger
  • Requires B : 4-channel radio gear
  • Requires C : electronic speed control
  • Requires D : TS plastic model paint

CLICK HERE for a radio, servo, battery, charger & paint combo
