Tamiya - 1/14 Grand Hauler Tractor Truck Kit image

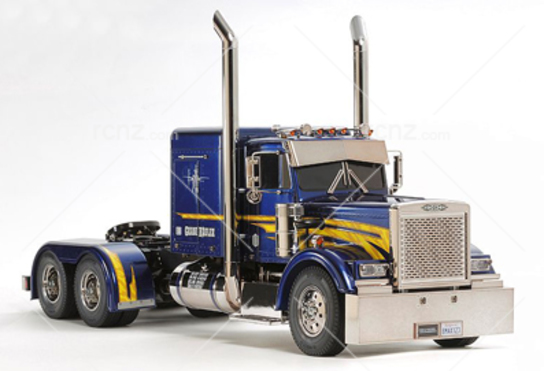

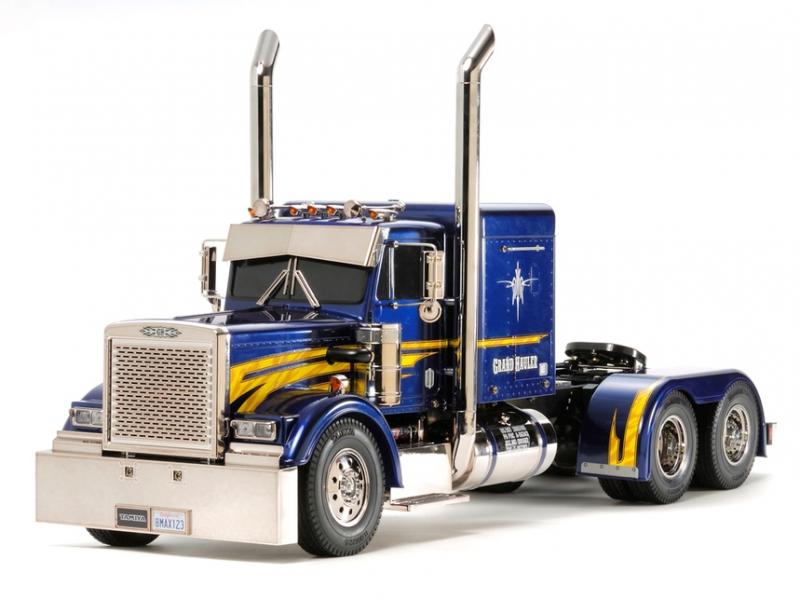

Tamiya - 1/14 Grand Hauler Tractor Truck Kit

Manufacturer: Tamiya Product Code: 56344

56344 1/14 Grand Hauler tractor truck kit

Out of
Out of Stock
In-Stock Alert
We'll email you when it's back in stock

The Grand Hauler resembles a classic customized American tractor truck. The included 540 motor drives a 3-speed transmission, which has no problem turning the dual rear axles. Leaf spring and shocks keep the axles suspended to the metal C-Channel ladder frame, which keeps the power to the pavement.

This customized beauty, sports some new hardware.

  • Front Bumper
  • Grille
  • Visor
  • Stretched Chassis
  • Side Steps
  • Rear Fenders
  • Rear Bumper
  • Driver figure
  • Custom fat exhaust stacks
  • And more...

Whether by itself or coupled to an optional trailer, the Grand Hauler is sure to turn heads.

Click HERE to see how the 3 Speed transmission works on this vehicle.

Product Specifications

Scale 1/14
Construction type Assembly kit
Terrain use On-Road
Drive-train 4-axle semi
Drive type 3-speed
Drive line Dog bone
Differential type Live axle
Suspension Leaf spring
Steering mechanism Bell-crank
Shock damper Friction damper
Shock damper material Aluminum
Tire type Rubber
Tire tread Radial
Body material ABS Plastic
Chassis material Aluminum & plastic
Electronic Speed Control (ESC) Not included
ESC model N/A
LED Light buckets Yes
LED lights No
Motor 540-brushed type
Bearings Metal bearings
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Fixed
Adjustable gear ratio 3-speed transmission
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 692mm, width: 190mm, height: 300mm.
Special feature 2 The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing.
Special feature 3 Features a tough ladder frame construction with aluminum side channels and plastic cross members.
Special feature 4 Realistic drivetrain setup sees the front mounted motor powering twin rear axles.
Special feature 5 Metal leaf spring dampers with built-in coil springs provide durable suspension.
Special feature 6 Newly-designed 1/14 scale driver figure included.
Special feature 7 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
Requires A 7.2 battery & charger
Requires B 4-channel radio gear
Requires C Electronic speed control
Requires D TS plastic model paint

CLICK HERE for a radio, servo, battery, charger & paint combo
